Image Classification - Happy or Sad

This notebook demonstrates the process of building and training a Convolutional Neural Network (CNN) model to classify images as “happy” or “sad.” We will use TensorFlow and Keras for model creation and training.

graph LR
  A[Input Layer] --> B[Convolutional Layer 1]
  B --> C[MaxPooling Layer 1]
  C --> D[Convolutional Layer 2]
  D --> E[MaxPooling Layer 2]
  E --> F[Convolutional Layer 3]
  F --> G[MaxPooling Layer 3]
  G --> H[Flatten Layer]
  H --> I[Dense Layer 1]
  I --> J[Output Layer]

  style A fill:#f9f,stroke:#333,stroke-width:2px
  style B fill:#f9f,stroke:#333,stroke-width:2px
  style C fill:#f9f,stroke:#333,stroke-width:2px
  style D fill:#f9f,stroke:#333,stroke-width:2px
  style E fill:#f9f,stroke:#333,stroke-width:2px
  style F fill:#f9f,stroke:#333,stroke-width:2px
  style G fill:#f9f,stroke:#333,stroke-width:2px
  style H fill:#f9f,stroke:#333,stroke-width:2px
  style I fill:#f9f,stroke:#333,stroke-width:2px
  style J fill:#f9f,stroke:#333,stroke-width:2px

Data Preprocessing

In this section, we load and preprocess the dataset of images representing happy and sad emotions. We remove any images with unsupported file extensions and scale the pixel values to be between 0 and 1 for efficient training.

Preprocessing Code

# Preprocessing Code
#%pip install tensorflow opencv-python matplotlib
import tensorflow as tf
import os
# ...
os.path.join("data","happy")
'data/happy'

Check if a GPU is available

gpus = tf.config.experimental.list_physical_devices('GPU')
len(gpus)
0

Avoid OOM Errors By Setting GPU Memory Consumption Growth

# Avoid OOM Errors By Setting GPU Memory Consumption Growth
gpus = tf.config.experimental.list_physical_devices('GPU')
for gpu in gpus:
    tf.config.experimental.set_memory_growth(gpu, True)

Remove dodgy images

import cv2
import imghdr
import matplotlib.pyplot as plt
/var/folders/v8/l1n5gfyn3zj_f5m_0z4bv2m80000gn/T/ipykernel_4077/2011824555.py:2: DeprecationWarning: 'imghdr' is deprecated and slated for removal in Python 3.13
  import imghdr
data_dir = "data"
os.listdir(os.path.join(data_dir,"happy"))
['images26.jpg',
 'images241.jpg',
 'images32.jpg',
 '89ca5d41335b4f9207b9cf03538a7dbd63497e474912837562cb9f58809ac32f._RI_TTW_.png',
 '05-12-21-happy-people.jpg',
 '110754-utyeqqosky-1547658396.jpeg',
 'image22.jpeg',
 'Happy.jpg',
 'images137.jpg',
 'Overtly-Cheerful-Primer-Editorials-min.png',
 'how-happy-are-healthy-people.jpg',
 '170404-happy-workers-feature.jpg',
 'images27.jpg',
 'friends-happy-190821.jpg',
 'images242.jpg',
 'goup-happy-people-group-jumping-isolated-white-background-35582232.jpg',
 'images134.jpg',
 'images120.jpg',
 'GettyImages-454356720.jpg',
 'WorldHappinessReport_620.jpg',
 '_86a43964-aa8e-11e8-82d1-388e3d6e11aa.jpg',
 'images243.jpg',
 'images30.jpg',
 'png-transparent-graphy-happy-people-love-child-photography-thumbnail.png',
 'young-and-happy-people-vector-15114154.jpg',
 'images247.jpg',
 'file-20230208-27-3jttof.jpg',
 'images125.jpg',
 'friends_190412.jpg',
 'images21.jpg',
 'images246.jpg',
 'happy-people-jump-with-raised-arms-characters-win_107791-14884.jpg',
 'images250.jpg',
 'images23.jpg',
 'happy-peaceful.jpg',
 'images132.jpg',
 'MV5BMTM3ODM0NTQ1MF5BMl5BanBnXkFtZTcwMzAxMTM5OA._V1_FMjpg_UX1000_.jpg',
 'gdfVVm_MyCRtqpvdkt8vtSB1n_oz_CpwCq6vNMpj0S8.jpg',
 'images245.jpg',
 'images236.jpg',
 'images79.jpg',
 'images183.jpg',
 'images197.jpg',
 'happiness.jpg',
 'images6.jpg',
 'maxresdefault.jpg',
 'shiny-happy-people.jpg',
 'images7.jpg',
 'images196.jpg',
 'images182.jpg',
 '20150413185238-secrets-happy-entrepreneurs-woman-gratitude-rainbow-.jpeg',
 'images78.jpg',
 'images50.jpg',
 'happy-person.jpeg',
 'images87.jpg',
 'images91.jpg',
 'images85.jpg',
 'images235.jpg',
 'image24.jpeg',
 'group-portrait-happy-people-disabilities-49330313.jpg',
 'images156.jpg',
 'GettyImages-871518740.jpg',
 'images195.jpg',
 'nm-how-happiness-affects-health-tnail.jpg',
 'images208.jpg',
 'images47.jpg',
 'images53.jpg',
 'images220.jpg',
 'images84.jpg',
 'group-young-happy-people-with-their-hands-up_369728-62.jpg',
 'images218.jpg',
 'images57.jpg',
 'images43.jpg',
 '1HEoLBLidT2u4mhJ0oiDgig.png',
 'images191.jpg',
 'images146.jpg',
 'where-to-watch-shiny-happy-people.jpg',
 'happy-woman-in-nature-at-sunset.jpg',
 'image25.jpeg',
 '9b65a25adca61c48bcb01370116723e3--happy-people-brings.jpg',
 '_happy_jumping_on_beach-40815.jpg',
 'i00YzYyLTkxY2ItY2I3OWE3NDBmNDVmXkEyXkFqcGdeQXVyMjkwOTAyMDU._V1_FMjpg_UX1000_.jpg',
 'VJdvLa-download-happy-blackman-png.png',
 'Duggar-Family-Secrets-Are-Exposed-in-New-Docuseries-Featuring-Jill-and-Amy-featured.png',
 '613k1XcpYCL.jpg',
 'images42.jpg',
 'images81.jpg',
 'images95.jpg',
 '56f455011e0000b300705475.jpeg',
 'images83.jpg',
 'hand-drawn-happy-friends-jumping_23-2149095224.jpg',
 'images179.jpg',
 'images150.jpg',
 'A_Sep20_14_1189155141.jpg',
 'ipsos-global-advisor-happiness-2022-opti.jpg',
 'images193.jpg',
 'images55.jpg',
 'images232.jpg',
 'happy-indians_5f66fd46d9f5b.jpg',
 'images70.jpg',
 'Happy-people-800x533.jpg',
 'Screen-Shot-2012-10-23-at-12.57.22-PM.png',
 'images161.jpg',
 'images149.jpg',
 'images148.jpg',
 'images160.jpg',
 'Screaming-Happy-Woman-THe-Trent.jpg',
 'images71.jpg',
 '343515-worldhappinessreport1440.jpg',
 'happiness_thumbnail.jpg',
 'images200.jpg',
 'images214.jpg',
 'images189.jpg',
 'images176.jpg',
 'happy-people.jpg',
 'image30.jpeg',
 'images66.jpg',
 'Successful-year.jpg',
 'images211.jpg',
 '7VR73K6EP5ETVEOUFANWBUYJEQ.jpg',
 'physed-happiness-superJumbo.jpg',
 'images9.jpg',
 '988689_Wallpaper2.jpg',
 'happy-people2.jpg',
 '35438_hd.jpg',
 'images199.jpg',
 'Happy-People-PNG.png',
 'happy-people-vector-839522.jpg',
 'images63.jpg',
 'images210.jpg',
 'images77.jpg',
 'images204.jpg',
 'images238.jpg',
 'Dollarphotoclub_76084977-1.jpg',
 'images49.jpg',
 'images206.jpg',
 'jumping-and-dancing-happy-people-positive-emotions-set-illustration-free-vector.jpg',
 'habits-of-happy-people.jpg',
 '1_617fd1e2590c2.jpg',
 'dv2051009.jpg',
 'happy-woman.jpg',
 '377dac1b50ef865c920abb84d9d3857d173750b14306061e9aa5b4a1ec0dcdfa-rimg-w1196-h796-gmir.jpg',
 'smile.woman_.jpg',
 'images159.jpg',
 'images74.jpg',
 'images13.jpg',
 'Happy-Guy.jpg',
 'getty_152414899_97046097045006_68075.jpg',
 'images102.jpg',
 'images117.jpg',
 '106827976-1611251261868-twenty20_33fd1f3f-9221-4c64-bcb1-bfeec3022d9b.jpg',
 'images249.jpg',
 'images12.jpg',
 'image16.jpeg',
 'images10.jpg',
 'what-makes-people-happy1.jpg',
 'getty_505175324_2000131020009280246_158016.jpg',
 'group-of-happy-people-2.jpg',
 'happy-people_1463241208.jpg',
 'images128.jpg',
 'images114.jpg',
 'getty_478389113_970647970450091_99776.jpg',
 'images11.jpg',
 'images29.jpg',
 'happy-people-in-the-poppy-field-1280x800-wide-wallpapers-net.jpg',
 'images15.jpg',
 'riskshappypeopletakeh_1384254283.jpg',
 '835405.jpg',
 'images110.jpg',
 'hdptcar-fi-2.jpg',
 'images105.jpg',
 'images139.jpg',
 'happy-woman-headphones-pink-african-american-1296x728-header.jpg',
 'web3-happy-people-outside-smile-sun-nature-eduardo-dutra-620857-unsplash.jpg',
 'hand-drawn-happy-people-jumping_23-2149092878.jpg',
 'images14.jpg',
 'goup-happy-people-35582464.jpg',
 'compassion-900x387.jpg',
 'images107.jpg',
 'happypeople-1024x679.jpg',
 'images106.jpg',
 'images17.jpg',
 'png-clipart-happiness-graphy-smile-happy-people-love-photography.png']
image_exts = ["jpg", "jpeg", "png", "bmp"]
image_exts[0]
'jpg'
for image_class in os.listdir(data_dir):
    for image in os.listdir(os.path.join(data_dir, image_class)):
        print(image)
Duggar-Family-Secrets-Are-Exposed-in-New-Docuseries-Featuring-Jill-and-Amy-featured.png
377dac1b50ef865c920abb84d9d3857d173750b14306061e9aa5b4a1ec0dcdfa-rimg-w1196-h796-gmir.jpg
png-transparent-woman-sad-folklore-ghost-horror-spirit-vendetta-vengeance-girl-person-thumbnail.png
img = cv2.imread(os.path.join(data_dir, "happy", "_86a43964-aa8e-11e8-82d1-388e3d6e11aa.jpg"))
img.shape
(540, 960, 3)
plt.imshow(cv2.cvtColor(img, cv2.COLOR_BGR2RGB))
plt.show()

for image_class in os.listdir(data_dir):
    for image in os.listdir(os.path.join(data_dir, image_class)):
        image_path = os.path.join(data_dir, image_class, image)
        try:
            img = cv2.imread(image_path)
            tip = imghdr.what(image_path)
            if tip not in image_exts:
                print("Image not in ext list {}" .format(image_path))
                os.remove(image_path)
        except Exception as e:
            print("Issue with image at {}" .format(image_path))
            # os.remove(image_path)
libpng warning: iCCP: known incorrect sRGB profile

Load the dataset

tf.data.Dataset.??
import numpy as np
from matplotlib import pyplot as plt
data = tf.keras.utils.image_dataset_from_directory('data')
Found 256 files belonging to 2 classes.
data_iterators = data.as_numpy_iterator()

Dataset Exploration

In this section, we explore the loaded dataset and visualize some sample images.

# get another batch from data_iterators
batch = data_iterators.next()
len(batch)
2
# images represent as numpy arrays
batch[0].shape
(32, 256, 256, 3)
# class 0 = happy
# class 1 = sad
batch[1]
array([0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 1, 1, 0, 0, 0, 0, 0, 1, 1,
       0, 0, 0, 0, 0, 1, 1, 0, 0, 0], dtype=int32)

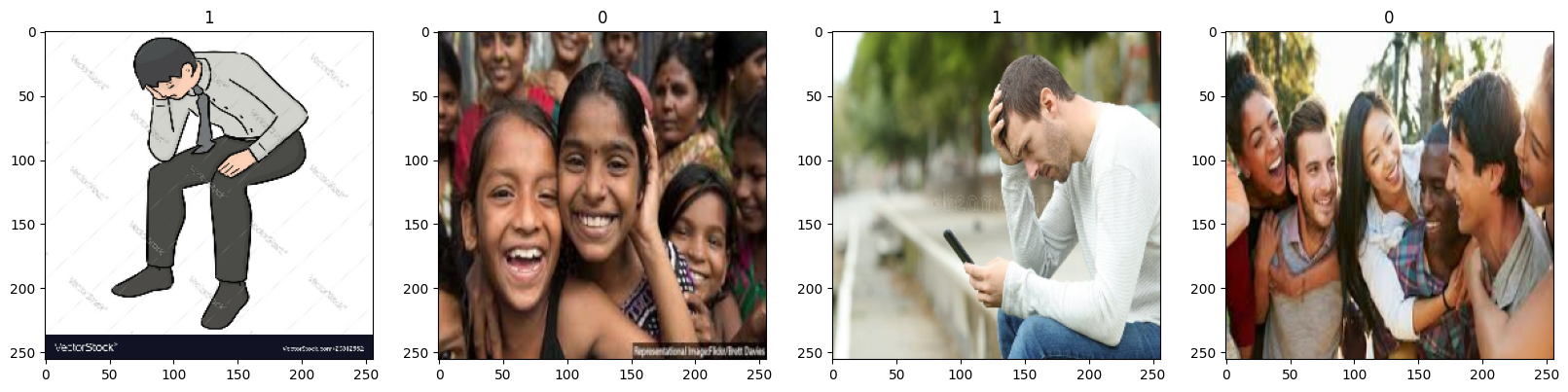

fig, ax = plt.subplots(ncols=4, figsize=(20, 20))
for idx, img in enumerate(batch[0][:4]):
    ax[idx].imshow(img.astype(int))
    ax[idx].title.set_text(batch[1][idx])

scaled = batch[0]/255
scaled[0].max()
1.0

Data Preprocessing - Scaling

In this section, we scale the pixel values of the images to be between 0 and 1.

data = data.map(lambda x, y: (x/255, y))
scaled_iterator = data.as_numpy_iterator()
batch = scaled_iterator.next()
2023-07-27 03:58:21.672218: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
batch[0].max()
1.0
fig, ax = plt.subplots(ncols=4, figsize=(20, 20))
for idx, img in enumerate(batch[0][:4]):
    ax[idx].imshow(img)
    ax[idx].title.set_text(batch[1][idx])

len(data)
8

Data Splitting

In this section, we split the dataset into training, validation, and test sets.

train_size = int(len(data)*.7)
val_size = int(len(data)*.2)+1
test_size = int(len(data)*.1)+1
train = data.take(train_size)
val = data.skip(train_size).take(val_size)
test = data.skip(train_size+val_size).take(test_size)
len(test)
1

DEEP MODEL

good stuff

Model Architecture

In this section, we define the CNN model architecture using Keras. We use the Sequential model from Keras to define the CNN. The model consists of 3 convolutional layers with a ReLU activation function and max pooling layers in between. At the end of the model, we have a fully connected layer with a sigmoid activation function. We use the Adam optimizer and categorical cross entropy as the loss function.

from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import Dense, Conv2D, MaxPooling2D, Flatten
model = Sequential()
graph LR
  A[Input Layer] --> B[Convolutional Layer 1]
  B --> C[MaxPooling Layer 1]
  C --> D[Convolutional Layer 2]
  D --> E[MaxPooling Layer 2]
  E --> F[Convolutional Layer 3]
  F --> G[MaxPooling Layer 3]
  G --> H[Flatten Layer]
  H --> I[Dense Layer 1]
  I --> J[Output Layer]

  style A fill:#f9f,stroke:#333,stroke-width:2px
  style B fill:#f9f,stroke:#333,stroke-width:2px
  style C fill:#f9f,stroke:#333,stroke-width:2px
  style D fill:#f9f,stroke:#333,stroke-width:2px
  style E fill:#f9f,stroke:#333,stroke-width:2px
  style F fill:#f9f,stroke:#333,stroke-width:2px
  style G fill:#f9f,stroke:#333,stroke-width:2px
  style H fill:#f9f,stroke:#333,stroke-width:2px
  style I fill:#f9f,stroke:#333,stroke-width:2px
  style J fill:#f9f,stroke:#333,stroke-width:2px


model.add(Conv2D(16, (3, 3), activation='relu', input_shape=(256, 256, 3)))
model.add(MaxPooling2D())

model.add(Conv2D(32, (3, 3), activation='relu'))
model.add(MaxPooling2D())

model.add(Conv2D(64, (3, 3), activation='relu'))
model.add(MaxPooling2D())

model.add(Flatten())

model.add(Dense(256, activation='relu'))
model.add(Dense(1, activation='sigmoid'))
model.compile(optimizer='adam', loss='binary_crossentropy', metrics=['accuracy'])
model.summary()
Model: "sequential"
_________________________________________________________________
 Layer (type)                Output Shape              Param #
=================================================================
 conv2d (Conv2D)             (None, 254, 254, 16)      448

 max_pooling2d (MaxPooling2  (None, 127, 127, 16)      0
 D)

 conv2d_1 (Conv2D)           (None, 125, 125, 32)      4640

 max_pooling2d_1 (MaxPoolin  (None, 62, 62, 32)        0
 g2D)

 conv2d_2 (Conv2D)           (None, 60, 60, 64)        18496

 max_pooling2d_2 (MaxPoolin  (None, 30, 30, 64)        0
 g2D)

 flatten (Flatten)           (None, 57600)             0

 dense (Dense)               (None, 256)               14745856

 dense_1 (Dense)             (None, 1)                 257

=================================================================
Total params: 14769697 (56.34 MB)
Trainable params: 14769697 (56.34 MB)
Non-trainable params: 0 (0.00 Byte)
_________________________________________________________________

Model Training

another good stuff

In this section, we train the CNN model on the training and validation sets.

log_dir = "logs"
tensorboard_callback = tf.keras.callbacks.TensorBoard(log_dir=log_dir)
hist = model.fit(train, epochs=20, validation_data=val, callbacks=[tensorboard_callback])
Epoch 1/20
5/5 [==============================] - ETA: 0s - loss: 2.1236 - accuracy: 0.62505/5 [==============================] - 6s 852ms/step - loss: 2.1236 - accuracy: 0.6250 - val_loss: 1.0543 - val_accuracy: 0.3281
Epoch 2/20
5/5 [==============================] - ETA: 0s - loss: 0.7020 - accuracy: 0.57505/5 [==============================] - 5s 752ms/step - loss: 0.7020 - accuracy: 0.5750 - val_loss: 0.5787 - val_accuracy: 0.6719
Epoch 3/20
5/5 [==============================] - ETA: 0s - loss: 0.4572 - accuracy: 0.76885/5 [==============================] - 6s 886ms/step - loss: 0.4572 - accuracy: 0.7688 - val_loss: 0.4715 - val_accuracy: 0.7188
Epoch 4/20
5/5 [==============================] - ETA: 0s - loss: 0.4542 - accuracy: 0.76885/5 [==============================] - 6s 864ms/step - loss: 0.4542 - accuracy: 0.7688 - val_loss: 0.5098 - val_accuracy: 0.7188
Epoch 5/20
5/5 [==============================] - ETA: 0s - loss: 0.4182 - accuracy: 0.80625/5 [==============================] - 5s 749ms/step - loss: 0.4182 - accuracy: 0.8062 - val_loss: 0.3729 - val_accuracy: 0.9062
Epoch 6/20
5/5 [==============================] - ETA: 0s - loss: 0.3648 - accuracy: 0.83135/5 [==============================] - 5s 734ms/step - loss: 0.3648 - accuracy: 0.8313 - val_loss: 0.2589 - val_accuracy: 0.9375
Epoch 7/20
5/5 [==============================] - ETA: 0s - loss: 0.2975 - accuracy: 0.93125/5 [==============================] - 5s 735ms/step - loss: 0.2975 - accuracy: 0.9312 - val_loss: 0.3374 - val_accuracy: 0.7812
Epoch 8/20
5/5 [==============================] - ETA: 0s - loss: 0.2943 - accuracy: 0.86875/5 [==============================] - 5s 768ms/step - loss: 0.2943 - accuracy: 0.8687 - val_loss: 0.2920 - val_accuracy: 0.9062
Epoch 9/20
5/5 [==============================] - ETA: 0s - loss: 0.1788 - accuracy: 0.97505/5 [==============================] - 8s 1s/step - loss: 0.1788 - accuracy: 0.9750 - val_loss: 0.2523 - val_accuracy: 0.9062
Epoch 10/20
5/5 [==============================] - ETA: 0s - loss: 0.2026 - accuracy: 0.93755/5 [==============================] - 7s 1s/step - loss: 0.2026 - accuracy: 0.9375 - val_loss: 0.1680 - val_accuracy: 0.9375
Epoch 11/20
5/5 [==============================] - ETA: 0s - loss: 0.1517 - accuracy: 0.95635/5 [==============================] - 6s 898ms/step - loss: 0.1517 - accuracy: 0.9563 - val_loss: 0.1164 - val_accuracy: 0.9688
Epoch 12/20
5/5 [==============================] - ETA: 0s - loss: 0.1141 - accuracy: 0.98755/5 [==============================] - 6s 883ms/step - loss: 0.1141 - accuracy: 0.9875 - val_loss: 0.1531 - val_accuracy: 0.9531
Epoch 13/20
5/5 [==============================] - ETA: 0s - loss: 0.1109 - accuracy: 0.96885/5 [==============================] - 5s 796ms/step - loss: 0.1109 - accuracy: 0.9688 - val_loss: 0.0471 - val_accuracy: 1.0000
Epoch 14/20
5/5 [==============================] - ETA: 0s - loss: 0.0717 - accuracy: 0.98125/5 [==============================] - 5s 796ms/step - loss: 0.0717 - accuracy: 0.9812 - val_loss: 0.0218 - val_accuracy: 1.0000
Epoch 15/20
5/5 [==============================] - ETA: 0s - loss: 0.0526 - accuracy: 0.98755/5 [==============================] - 5s 695ms/step - loss: 0.0526 - accuracy: 0.9875 - val_loss: 0.0296 - val_accuracy: 0.9844
Epoch 16/20
5/5 [==============================] - ETA: 0s - loss: 0.0416 - accuracy: 0.99375/5 [==============================] - 5s 768ms/step - loss: 0.0416 - accuracy: 0.9937 - val_loss: 0.0382 - val_accuracy: 1.0000
Epoch 17/20
5/5 [==============================] - ETA: 0s - loss: 0.0256 - accuracy: 0.99375/5 [==============================] - 5s 900ms/step - loss: 0.0256 - accuracy: 0.9937 - val_loss: 0.0402 - val_accuracy: 0.9844
Epoch 18/20
5/5 [==============================] - ETA: 0s - loss: 0.0400 - accuracy: 0.99375/5 [==============================] - 7s 1s/step - loss: 0.0400 - accuracy: 0.9937 - val_loss: 0.0165 - val_accuracy: 1.0000
Epoch 19/20
5/5 [==============================] - ETA: 0s - loss: 0.0165 - accuracy: 1.00005/5 [==============================] - 5s 788ms/step - loss: 0.0165 - accuracy: 1.0000 - val_loss: 0.0145 - val_accuracy: 1.0000
Epoch 20/20
5/5 [==============================] - ETA: 0s - loss: 0.0105 - accuracy: 1.00005/5 [==============================] - 6s 1s/step - loss: 0.0105 - accuracy: 1.0000 - val_loss: 0.0081 - val_accuracy: 1.0000
2023-07-27 04:03:14.023704: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:03:18.255534: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:03:19.815394: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:03:23.174734: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:03:24.809815: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:03:28.622819: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:03:30.526848: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:03:34.421046: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:03:36.104529: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:03:39.478804: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:03:41.039956: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:03:44.435770: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:03:45.963591: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:03:49.178376: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:03:50.743021: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:03:54.037560: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:03:55.951233: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:04:01.456234: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:04:03.457572: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:04:08.061141: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:04:10.113932: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:04:13.776048: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:04:15.621654: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:04:19.308929: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:04:21.379377: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:04:25.076040: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:04:26.674164: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:04:30.163587: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:04:31.851561: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:04:34.950114: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:04:36.486424: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:04:39.724312: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:04:41.355761: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:04:45.180619: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:04:46.793976: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:04:52.472749: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:04:54.119024: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:04:57.169953: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:04:59.122699: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
2023-07-27 04:05:03.629668: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
hist.history
{'loss': [2.1235644817352295,
  0.7019603252410889,
  0.4572330415248871,
  0.4541848301887512,
  0.41823139786720276,
  0.3647550344467163,
  0.29748818278312683,
  0.2943264842033386,
  0.178763285279274,
  0.20261912047863007,
  0.15168893337249756,
  0.11407314240932465,
  0.11092028766870499,
  0.07170285284519196,
  0.05255885794758797,
  0.04164768010377884,
  0.02555043436586857,
  0.03998959809541702,
  0.01653195358812809,
  0.01046471856534481],
 'accuracy': [0.625,
  0.574999988079071,
  0.768750011920929,
  0.768750011920929,
  0.8062499761581421,
  0.831250011920929,
  0.9312499761581421,
  0.8687499761581421,
  0.9750000238418579,
  0.9375,
  0.956250011920929,
  0.987500011920929,
  0.96875,
  0.981249988079071,
  0.987500011920929,
  0.9937499761581421,
  0.9937499761581421,
  0.9937499761581421,
  1.0,
  1.0],
 'val_loss': [1.0542879104614258,
  0.5787237286567688,
  0.4715065360069275,
  0.5098134875297546,
  0.3729403614997864,
  0.2589319348335266,
  0.33735647797584534,
  0.2919774055480957,
  0.25226324796676636,
  0.16799168288707733,
  0.11641531437635422,
  0.1531393826007843,
  0.04710891842842102,
  0.0218342412263155,
  0.029588568955659866,
  0.03818798065185547,
  0.04015404358506203,
  0.016501516103744507,
  0.014529326930642128,
  0.008069140836596489],
 'val_accuracy': [0.328125,
  0.671875,
  0.71875,
  0.71875,
  0.90625,
  0.9375,
  0.78125,
  0.90625,
  0.90625,
  0.9375,
  0.96875,
  0.953125,
  1.0,
  1.0,
  0.984375,
  1.0,
  0.984375,
  1.0,
  1.0,
  1.0]}
fig = plt.figure()
plt.plot(hist.history["loss"], color="teal", label="loss")
plt.plot(hist.history["val_loss"], color="orange", label="val_loss")
fig.suptitle("Loss", fontsize=20)
plt.legend(loc="upper left")
plt.show()

fig = plt.figure()
plt.plot(hist.history["accuracy"], color="teal", label="accuracy")
plt.plot(hist.history["val_accuracy"], color="orange", label="val_accuracy")
fig.suptitle("Accuracy", fontsize=20)
plt.legend(loc="upper left")
plt.show()

Model Evaluation

In this section, we evaluate the trained model on the test set.

from tensorflow.keras.metrics import Precision, Recall, BinaryAccuracy
pre = Precision()
re = Recall()
acc = BinaryAccuracy()
for batch in test.as_numpy_iterator():
    X, y = batch
    yhat = model.predict(X)
    pre.update_state(y, yhat)
    re.update_state(y, yhat)
    acc.update_state(y, yhat)
2023-07-27 04:11:53.386443: W tensorflow/core/lib/png/png_io.cc:88] PNG warning: iCCP: known incorrect sRGB profile
1/1 [==============================] - 0s 329ms/step
print("Precision: {}" .format(pre.result().numpy()))
print("Recall: {}" .format(re.result().numpy()))
print("Accuracy: {}" .format(acc.result().numpy()))
Precision: 1.0
Recall: 1.0
Accuracy: 1.0

Model Testing

In this section, we test the trained model on a new image.

import cv2
img = cv2.imread("sad_test.jpeg")
plt.imshow(cv2.cvtColor(img, cv2.COLOR_BGR2RGB))
plt.show()

resize = tf.image.resize(img, (256, 256))
plt.imshow(resize.numpy().astype(int))
plt.show()

np.expand_dims(resize, 0).shape
(1, 256, 256, 3)
yhat = model.predict(np.expand_dims(resize/255, 0))
yhat
1/1 [==============================] - 0s 68ms/step
array([[0.96018517]], dtype=float32)
if yhat < .5:
    print("Happy")
else:
    print("Sad")
Sad

Model Saving and Loading

In this section, we save the trained model to disk and load it back for future use.

from tensorflow.keras.models import load_model
model.save(os.path.join("models","happysadmodel.h5"))
/Library/Frameworks/Python.framework/Versions/3.11/lib/python3.11/site-packages/keras/src/engine/training.py:3000: UserWarning: You are saving your model as an HDF5 file via `model.save()`. This file format is considered legacy. We recommend using instead the native Keras format, e.g. `model.save('my_model.keras')`.
  saving_api.save_model(
new_model = load_model(os.path.join("models","happysadmodel.h5"))
yhat_new = new_model.predict(np.expand_dims(resize/255, 0))
1/1 [==============================] - 0s 60ms/step
if yhat_new < .5:
    print("Happy")
else:
    print("Sad")
Sad

This notebook showcases the complete process of building, training, evaluating, and testing an image classification model for recognizing “happy” or “sad” emotions using Convolutional Neural Networks. The trained model can be saved and reloaded for future use, making it suitable for various real-world applications.
